Lesson 37: ANOVA II

Project Day Expectations – Tuesday, 5 May (Lesson 38)

What you must do BEFORE class on 5 May

Email your non-cadet guest the formal invitation – deadline is today (Thursday).
- CC or BCC dusty.turner@westpoint.edu.
- Include title, classroom (TH339), date, and class hour.
Print every slide in COLOR, one slide per page.
Tape your slides to the board / wall before class begins.
- Arrive early – have everything posted before guests walk in.
- Order your slides left-to-right so a reader can walk the wall like a poster.
Stand by your display for the entire hour. Guests circulate; you don’t.

Invitation email template (if you still need to send it)

To:    [guest name and email]
CC/BCC: dusty.turner@westpoint.edu
Subj:  Invitation -- MA206X Project Presentation: [your title] -- 5 May 2026

Sir / Ma'am,

I'd like to invite you to my MA206X (Probability & Statistics) final project
presentation. My partner CDT [Partner Last Name] and I analyzed real Army Vantage
data from [your assigned brigade]. Our presentation, "[your title]," covers the
brigade readiness question we set out to answer; one-sample, two-sample, and
multiple-regression analyses on individual Soldier records; and recommendations
a brigade commander could act on.

When:   Tuesday, 5 May 2026, [class hour, e.g., A hour, 0740--0835]
Where:  Thayer Hall, Room TH339
Format: Walk-around / poster style. Every team posts their slides on the
        classroom walls; you can stop at any team's display, look at the analysis,
        and ask questions. My partner and I will be standing by ours -- come
        whenever works, stay as long or short as you'd like.

Please let me know if you can attend.

Very respectfully,
CDT [Last Name], USCC
[Company / Regiment]
[Your USMA email]

TEE Schedule (reminder)

Section	12 May 0730–1100	13 May 0730–1100	15 May 1300–1630
A2	2	0	15
B2	1	0	17
C2	3	1	12

See Lesson 36 for the full section roster by date.

What We Did: Lesson 35 (ANOVA I)

Lesson 35: One-Way ANOVA

Pairwise \(t\)-tests inflate the family-wise false-positive rate (1 - 0.95^6 ≈ 26.5% for 4 groups)
One-way ANOVA asks one question – “do any group means differ?” – with a single test at level \(\alpha\)
\(H_0: \mu_1 = \mu_2 = \cdots = \mu_k\) vs. \(H_a:\) at least one differs
\(F = MSTr / MSE\) on \((k-1,\ N-k)\) df; reject when \(F\) is large
ANOVA tells you that groups differ, not which pairs

What We’re Doing: Lesson 37

Objectives

Continue one-way ANOVA: assumptions, effect sizes, and reporting
Use multiple comparisons (Tukey HSD) to identify which group pairs differ while controlling the family-wise error rate

Required Reading

Devore, Section 10.2 (focus on multiple comparisons)

Break!

In Memoriam: My Classmates

9:11

The Takeaway for Today

Today’s Key Ideas

One-way ANOVA answers “do any group means differ?” – but it does not say which.
Running all \(\binom{k}{2}\) pairwise \(t\)-tests inflates the family-wise false-positive rate.
Tukey’s HSD tests every pair while holding the family-wise error rate at \(\alpha\).
Read Tukey output as CIs – if the CI excludes 0, that pair differs.

One-Way ANOVA Refresher

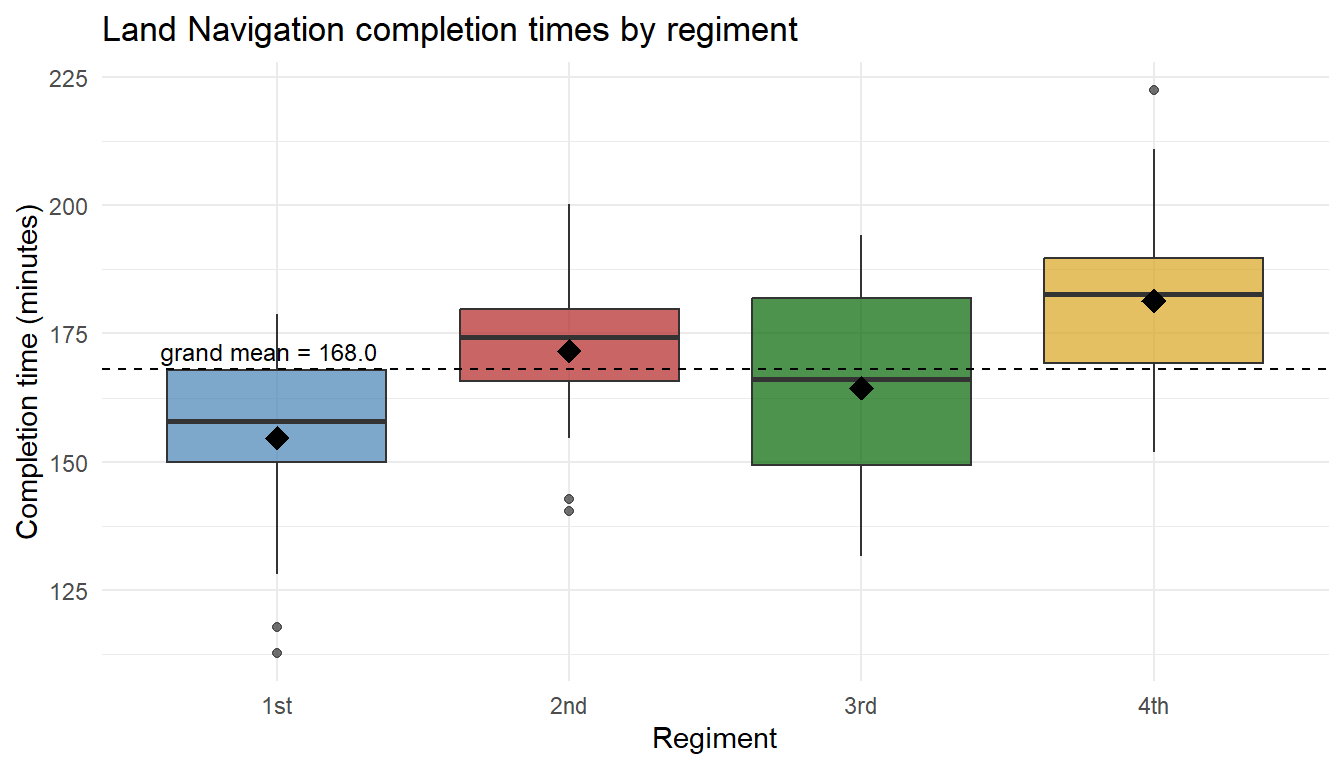

Today’s scenario: a brigade S-3 wants to know whether Land Navigation completion times (minutes) differ across the four cadet regiments (1st, 2nd, 3rd, 4th). We have 25 cadets sampled from each.

\(H_0:\ \mu_1 = \mu_2 = \mu_3 = \mu_4\)
\(H_a:\) at least one regiment mean differs
Test statistic: \(F = MSTr / MSE\) on \((k - 1,\ N - k)\) df

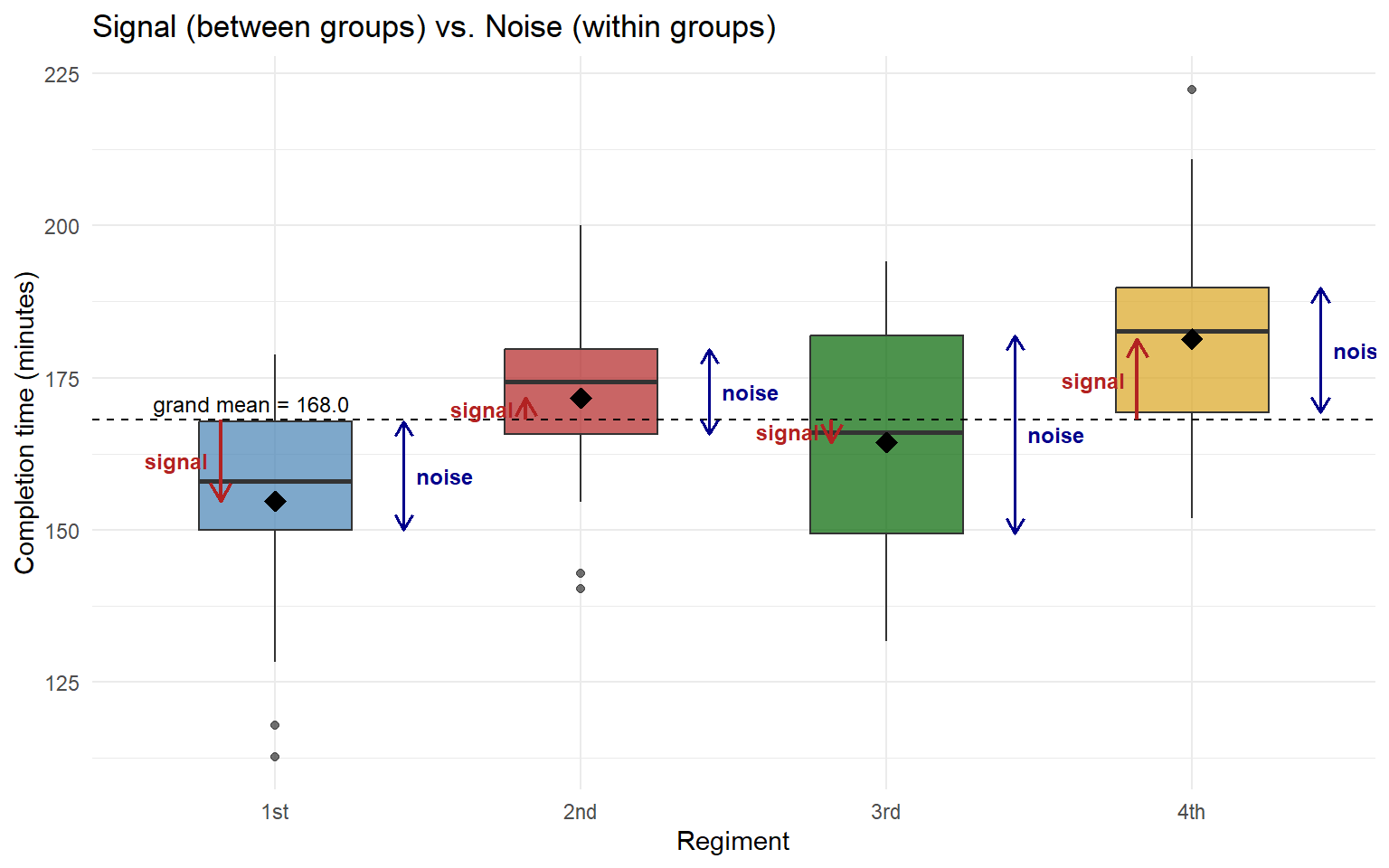

The Two Pieces: Signal and Noise

ANOVA is a signal-to-noise ratio. The two pieces:

MSTr – Mean Square Treatment (between-group, the signal)

How far apart are the group means from the grand mean? When the groups really differ, this is large.

\[ SSTr = \sum_{i=1}^{k} n_i (\bar{x}_i - \bar{x})^2 \qquad MSTr = \frac{SSTr}{k - 1} \]

This is the betweenness – it captures variation between the groups.

MSE – Mean Square Error (within-group, the noise)

How spread out is the data within each group, around its own group mean? This is the background noise that’s there even if the groups are identical.

\[ SSE = \sum_{i=1}^{k} \sum_{j=1}^{n_i} (x_{ij} - \bar{x}_i)^2 \qquad MSE = \frac{SSE}{N - k} \]

This is the withinness – it captures variation within each group.

The Ratio

\[ F = \frac{MSTr}{MSE} = \frac{\text{between-group variability}}{\text{within-group variability}} = \frac{\text{signal}}{\text{noise}} \]

\(F\) near 1 → between-group spread looks like ordinary noise → consistent with \(H_0\)
\(F\) much larger than 1 → between-group spread is bigger than noise can explain → reject \(H_0\)

Computing F by Hand

Before we let R do it, let’s build the F statistic ourselves from the four regiment means. With \(n_i = 25\), \(N = 100\), \(k = 4\):

Step 1 – group means and grand mean. From the data,

Regiment	\(\bar{x}_i\)
1st	154.72
2nd	171.65
3rd	164.40
4th	181.36

Grand mean: \(\bar{x} = 168.03\).

Step 2 – SSTr (between groups, the signal).

\[ SSTr = \sum_{i=1}^{4} n_i (\bar{x}_i - \bar{x})^2 \approx 9527.4 \]

On \(k - 1 = 3\) df, \(MSTr = 9527.4 / 3 \approx 3175.8\).

Step 3 – SSE (within groups, the noise).

\[ SSE = \sum_{i=1}^{4} \sum_{j=1}^{n_i} (x_{ij} - \bar{x}_i)^2 \approx 27,286.5 \]

On \(N - k = 96\) df, \(MSE = 27,286.5 / 96 \approx 284.2\).

Step 4 – assemble F.

\[ F = \frac{MSTr}{MSE} = \frac{3175.8}{284.2} \approx 11.17 \quad\text{on }(3,\,96)\text{ df.} \]

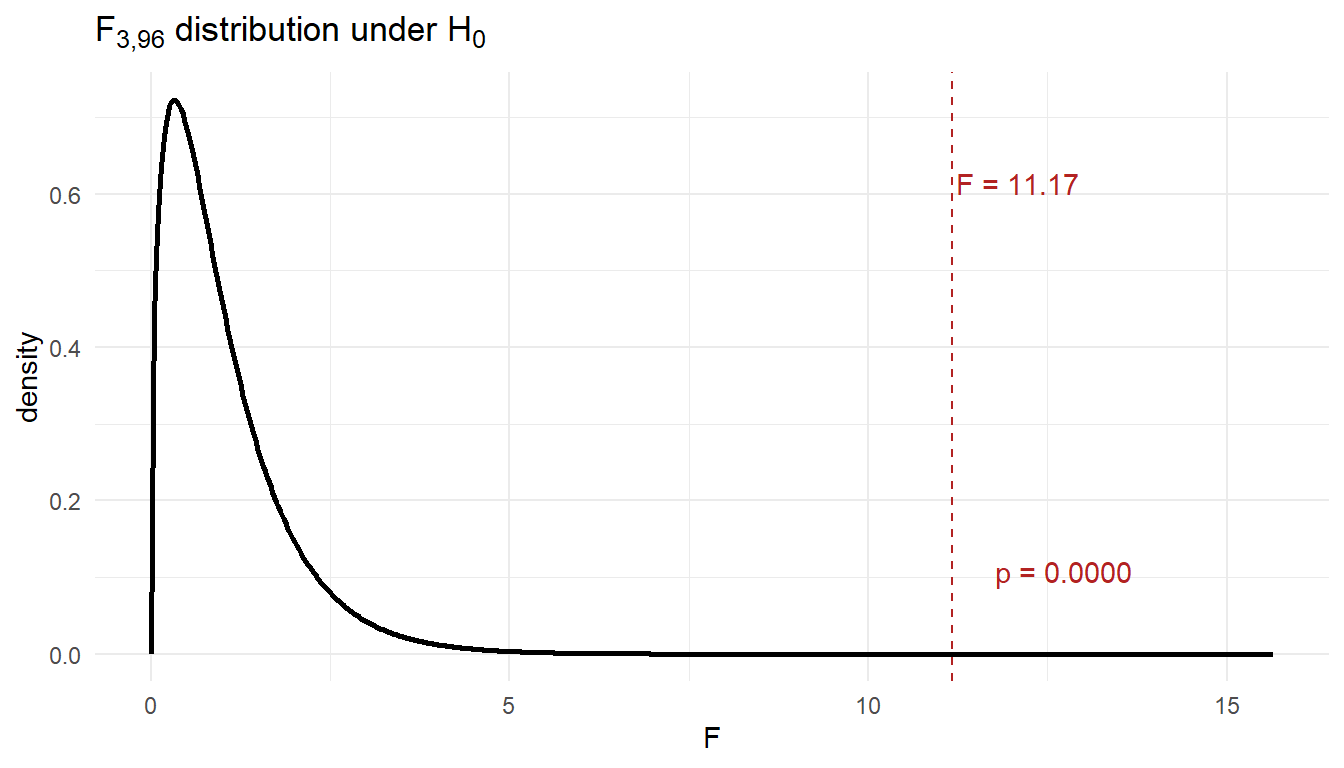

The p-value is the area to the right of \(F = 11.17\) under the \(F_{3,\,96}\) density:

So \(p \approx 0.0000\) – well below \(\alpha = 0.05\), so we reject \(H_0\): at least one regiment mean differs.

Confirm with R

Now let R do the same calculation:

fit_aov <- aov(time ~ regiment, data = landnav)
summary(fit_aov)

            Df Sum Sq Mean Sq F value     Pr(>F)
regiment     3   9527    3176   11.17 0.00000236 ***
Residuals   96  27286     284
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

Same \(F_{3,\,96} \approx 11.17\), same \(p \approx 0.0000\). We reject \(H_0\): at least one regiment’s mean Land Nav time differs from the others.

But that’s all ANOVA tells us. We still don’t know which regiments differ – if any specific pair actually does. Rejecting \(H_0\) only says “somewhere in there, at least one mean is different.” The pair could be 1st vs. 4th, or 3rd vs. 2nd, or some other combination – ANOVA is silent on that.

That’s the gap we close today, with Tukey’s HSD.

Tukey’s HSD: Which Pairs Actually Differ?

Tukey’s HSD (Honestly Significant Difference) compares every pair of group means while holding the family-wise error rate at \(\alpha\).

The procedure:

Run ANOVA. (You should reject \(H_0\) first – otherwise there’s nothing to dissect.)
For each pair \((i, j)\), compute the difference \(\bar{x}_i - \bar{x}_j\) and a CI based on the studentized range distribution and \(MSE\) from the ANOVA.
Any pair whose CI excludes 0 is significantly different at the family-wise \(\alpha\) level.

For a balanced design with \(J\) observations per group and \(I\) groups, the family-wise \((1-\alpha)\) confidence interval for \(\mu_i - \mu_j\) (Devore §10.2) is

\[ \bar{X}_i - \bar{X}_j \;\pm\; Q_{\alpha,\, I,\, I(J-1)} \cdot \sqrt{\frac{MSE}{J}} \]

\(Q\) is the upper-\(\alpha\) critical value of the studentized range distribution – a separate tabulated distribution (like \(t\) or \(F\)) built specifically for “what’s the largest gap among \(I\) group means, scaled by their standard error?” With \(I = 4\), \(J = 25\), \(MSE \approx 284.2\), \(\alpha = 0.05\): \(Q_{0.05,\,4,\,96} \approx 3.70\), giving a margin of \(\approx 12.47\) minutes. Any pair of regiment means more than that far apart is significantly different at the family-wise 5% level.

In R, TukeyHSD() takes the fitted aov object:

TukeyHSD(fit_aov)

  Tukey multiple comparisons of means
    95% family-wise confidence level

Fit: aov(formula = time ~ regiment, data = landnav)

$regiment
             diff        lwr       upr     p adj
2nd-1st 16.934419   4.466633 29.402205 0.0032893
3rd-1st  9.680381  -2.787405 22.148167 0.1842393
4th-1st 26.637740  14.169954 39.105526 0.0000013
3rd-2nd -7.254038 -19.721824  5.213748 0.4289106
4th-2nd  9.703321  -2.764465 22.171107 0.1825279
4th-3rd 16.957359   4.489573 29.425145 0.0032380

For each pair you get:

diff – sample mean difference \(\bar{x}_i - \bar{x}_j\)
lwr, upr – family-wise 95% CI for the true difference
p adj – Tukey-adjusted p-value

How to read it

If the CI excludes 0 (equivalently, p adj < 0.05), the pair is significantly different.
If the CI includes 0, the data don’t separate that pair.

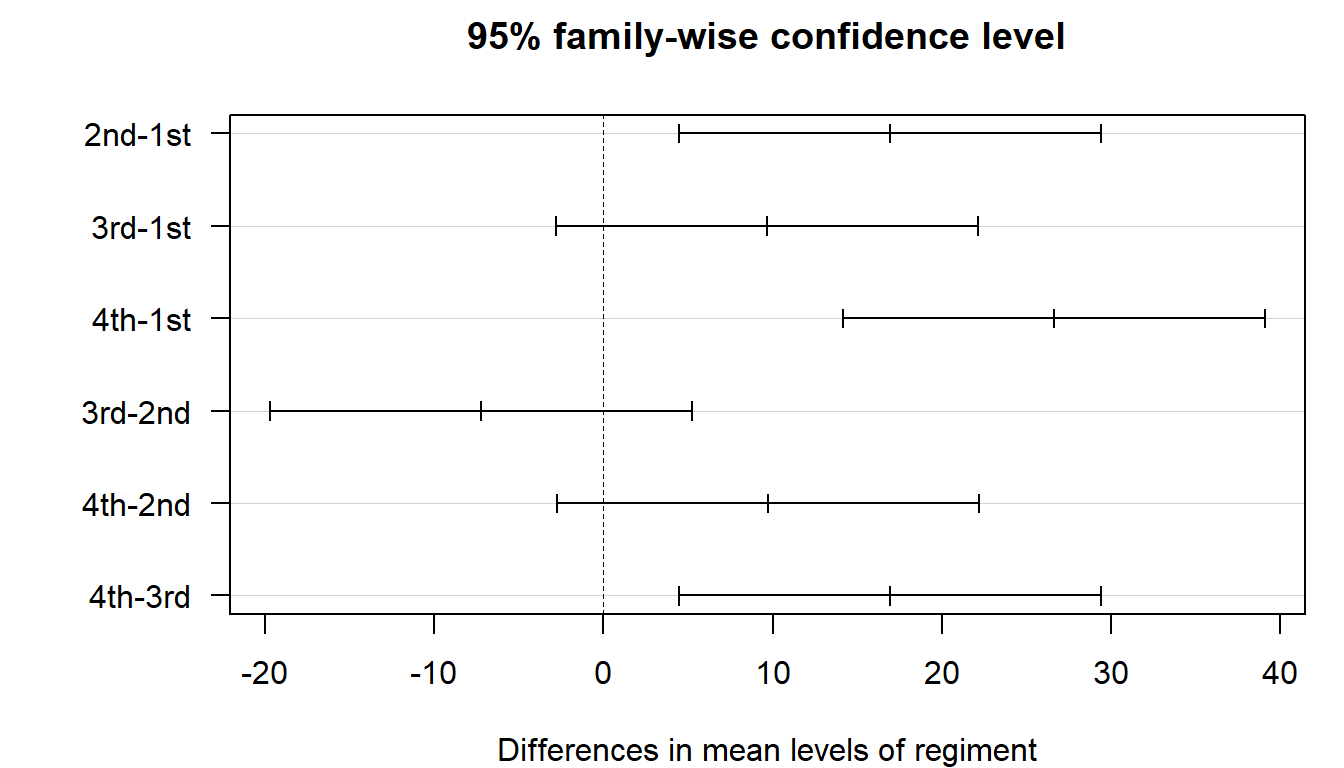

Visualizing Tukey’s HSD

Any interval crossing the dashed zero line is not a significant pair. Intervals fully to one side of zero are.

Reporting It

After Tukey’s HSD, write the result like this:

A one-way ANOVA found a significant difference in mean Land Nav completion time across the four regiments (\(F_{3, 96} \approx 11.2\), \(p < 0.001\)). Tukey’s HSD identified three significantly different pairs at the family-wise 5% level: 2nd vs. 1st, 4th vs. 1st, and 4th vs. 3rd. Operationally, 1st Regiment was the fastest and 4th Regiment was the slowest; the gap between them is roughly 27 minutes (95% family-wise CI excludes 0). The 3rd-vs-1st, 3rd-vs-2nd, and 4th-vs-2nd pairs were not significantly different.

Worked Example: Coffee Shop Wait Times

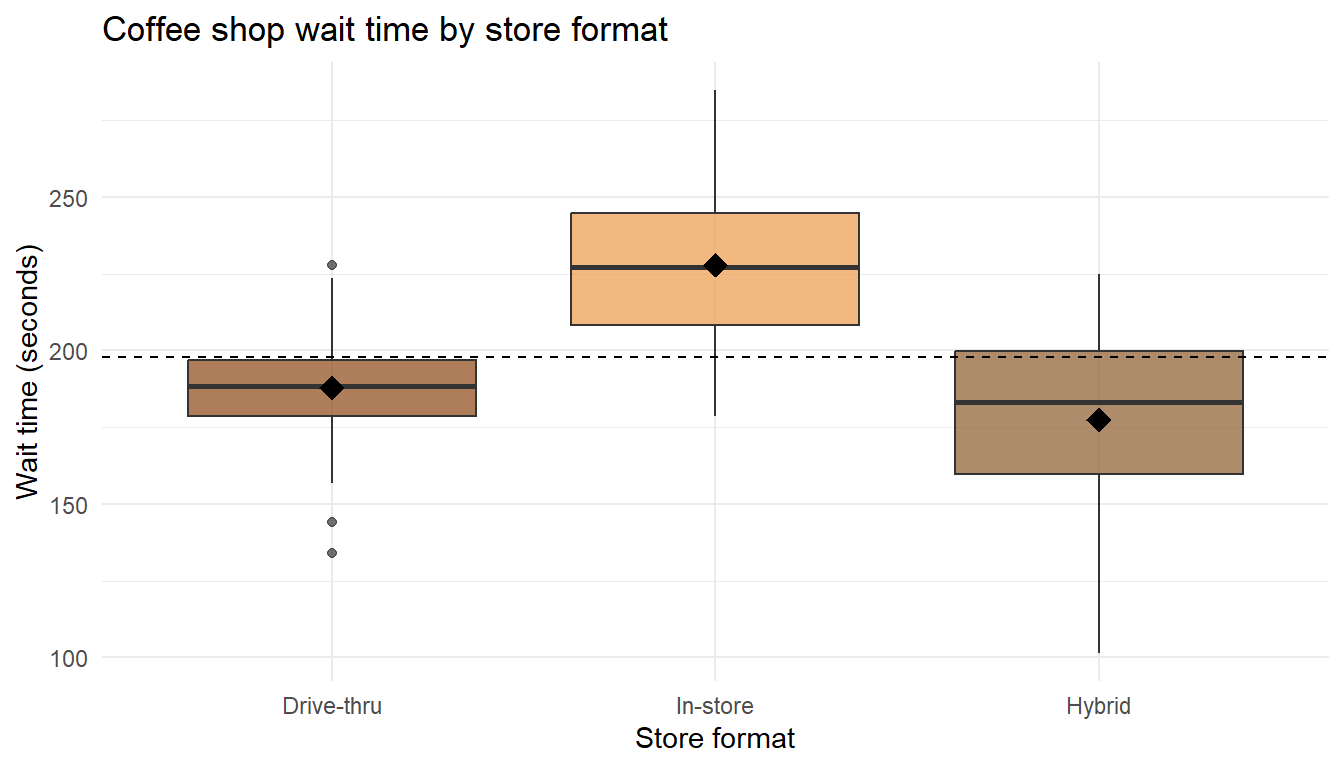

A regional coffee chain wants to know if mean wait time (seconds) differs across its three store formats: drive-thru only, in-store only, and hybrid. They time 30 random orders at each.

Step 1 – ANOVA.

fit_coffee <- aov(wait ~ format, data = coffee)
summary(fit_coffee)

            Df Sum Sq Mean Sq F value         Pr(>F)
format       2  42609   21304   27.95 0.000000000423 ***
Residuals   87  66322     762
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

We reject \(H_0\) at \(\alpha = 0.05\): at least one format’s mean wait differs.

Step 2 – Tukey HSD at 90% confidence (\(\alpha = 0.10\)).

Suppose the chain is willing to tolerate a higher false-positive rate in exchange for tighter intervals. Pass conf.level = 0.90 to TukeyHSD():

TukeyHSD(fit_coffee, conf.level = 0.90)

  Tukey multiple comparisons of means
    90% family-wise confidence level

Fit: aov(formula = wait ~ format, data = coffee)

$format
                         diff       lwr        upr     p adj
In-store-Drive-thru  40.04380  25.21776  54.869846 0.0000007
Hybrid-Drive-thru   -10.43791 -25.26396   4.388135 0.3131373
Hybrid-In-store     -50.48171 -65.30776 -35.655665 0.0000000

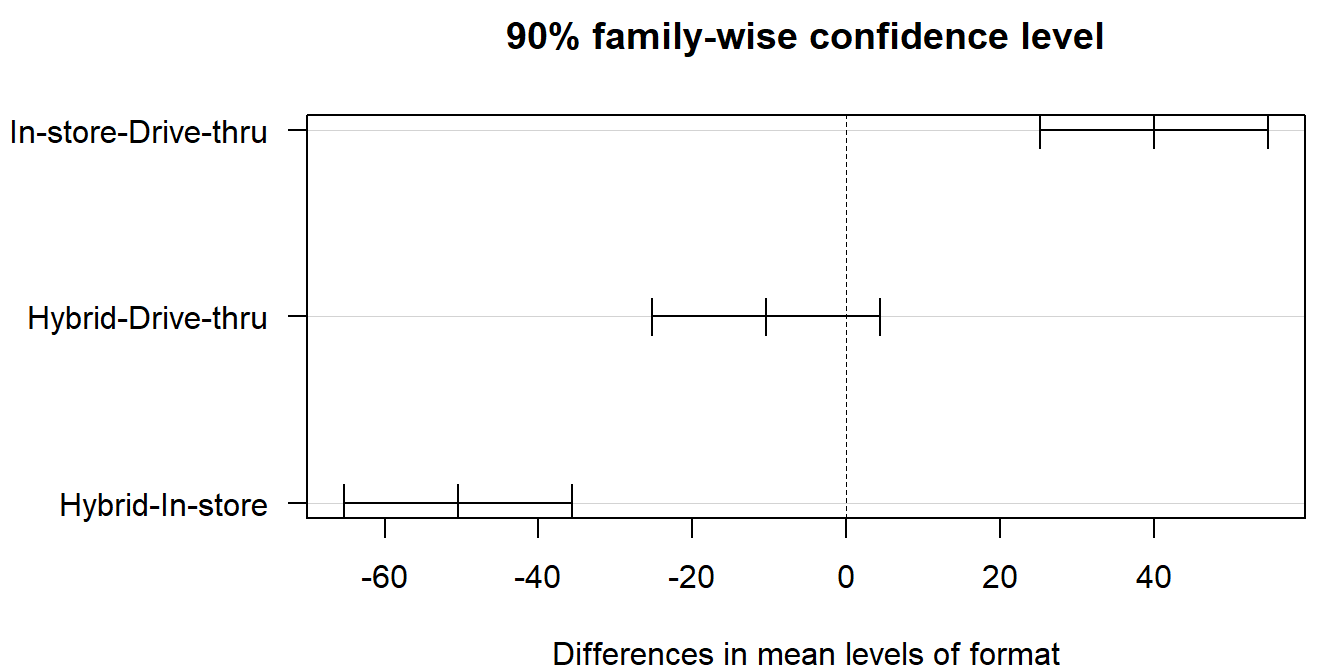

Read it. With the 90% family-wise CIs, In-store vs. Drive-thru and In-store vs. Hybrid still exclude 0 (those pairs differ even at this looser level). Drive-thru vs. Hybrid still straddles 0 – the gap isn’t detectable even when we relax to \(\alpha = 0.10\).

Report.

A one-way ANOVA found a significant difference in mean wait time across the three store formats (\(F_{2,87} \approx 28\), \(p < 0.001\)). At a family-wise 90% confidence level (\(\alpha = 0.10\)), Tukey’s HSD shows In-store is slower than both Drive-thru (\(\approx 40\) sec) and Hybrid (\(\approx 50\) sec), while Drive-thru and Hybrid remain statistically indistinguishable (90% CI for the difference still includes 0). Operationally: if reducing wait time is the goal, in-store ordering – not the choice between drive-thru and hybrid – is where to focus.

Board Problems

Problem 1: Tukey HSD Output

TukeyHSD() for a one-way ANOVA on three platoons returns:

              diff     lwr     upr   p adj
B - A        4.20   -1.10    9.50   0.146
C - A        9.80    4.50   15.10   0.001
C - B        5.60    0.30   10.90   0.038

Questions

Which pairs differ at the family-wise 5% level?
Construct the “underline” or “letter” summary: which means group together?

Answers

C vs. A (\(p = 0.001\)) and C vs. B (\(p = 0.038\)). B vs. A does not.
Letters: A and B share a group; C is its own group. \[ \underline{\bar{x}_A \quad \bar{x}_B} \qquad \bar{x}_C \]

Before You Leave

Today

One-way ANOVA tells you that at least one mean differs – not which.
Tukey’s HSD compares every pair while holding family-wise error at \(\alpha\).
Read the output as CIs: any interval excluding 0 is a significantly different pair.

Any questions?

Next Lesson

Lesson 38: Project Presentations

Tuesday, 5 May 2026 – walk-around presentations
Slides printed in color and taped to the board before class begins
Non-cadet guest invited (with me CC/BCC’d)
Stand by your display; guests circulate

Upcoming Graded Events

Project Presentation – 5 May 2026 (Lesson 38)
Tech Report (final) – see Canvas
TEE – 12, 13, 15 May 2026 (per section schedule)
